Air Cushion Headbox For Paper Machine

Product Description

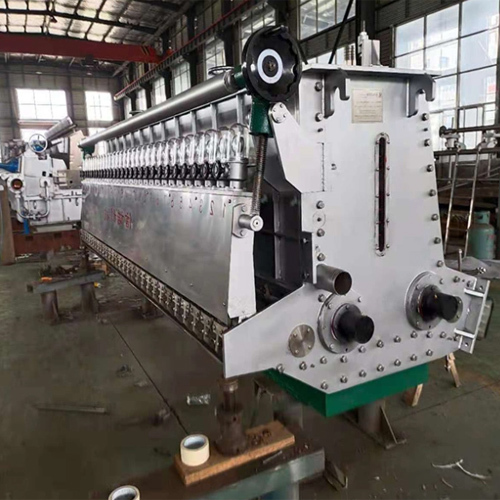

Air Cushion Headbox For Paper Machine

Description:

Air Cushion type headbox can increase the sizing pressure to meet the requirements of medium and high speed paper machines. The headbox consists of square taper tube device, evener roll device, top lip plate adjusting device, box body,control system, spraying device, air path system, etc.The headbox is designed with customer performance parameters, which can ensure work performance.

Specification:

Material: Stainless Steel

Cone Return Flow: 10%

Shrinking Percentage: 3-4%

Finished Paper Dryness: 92%

Designed Speed: 500m/Min

Working Speed: 400m/Min

Advantage:

1. Dedicated dilution water profile quantitative adjustment device can obtain better quantitative profile distribution;

2. High turbulence turbulence generator and special flap design can achieve better paper evenness;

3. Different designs are suitable for different vehicle speeds and paper types;

4. The addition of controllable edge flow to obtain good fiber orientation;

5. The upper lip plate adjustment mechanism of the structure can quickly and accurately adjust the quantification of the width;

6. The quick box opening design is convenient for maintenance and cleaning.
