Dandy Roll For Paper Machine

Product Description

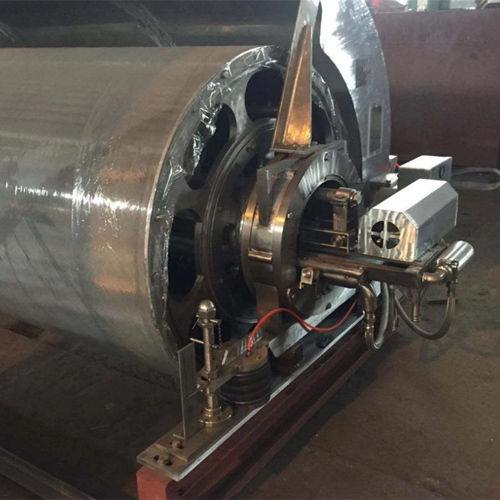

Dandy Roll For Paper Machine

Description:

The dandy roll works by being immersed into the free suspension and lightly wrapped by the wire. By unwinding the dandy roll wire on the top side of the web, the latter is smoothed. The intake pressure causes the stock water to penetrate the dandy roll fabric into the interior of the dandy roll. The flow is thus oriented in such a way that freely floating fibers in the suspension reach the fabric and are deflocculated there. The combined steam-water spray tube, the simple adjusting unit, quick retraction and heated chamfers are some of the other tried and tested features of the well-engineered dandy roll device.

Specification:

1.Roll diameter: 600,800,1000,1200,1400,1500mm

2.Face Length: 2000-6000mm

3.PM operating speed range: 100-600MPM

4.Dandy roll speed: 100-110RPM

5.Supply Scope: complete set of dandy roll with driving and control

6.Material: SUS304/SUS316L

Advantage:

1.Finish the paper surface and give the paper the required dandy.

2.Improve the evenness of the paper.

3.The effect of destroying and eliminating air bubbles in the paper web.
