Dryer Cylinder For Paper Mill

Product Description

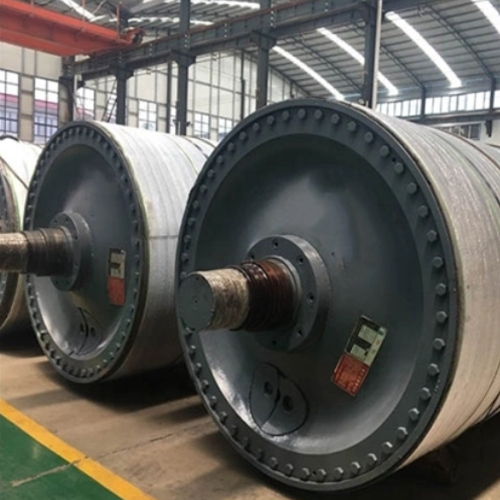

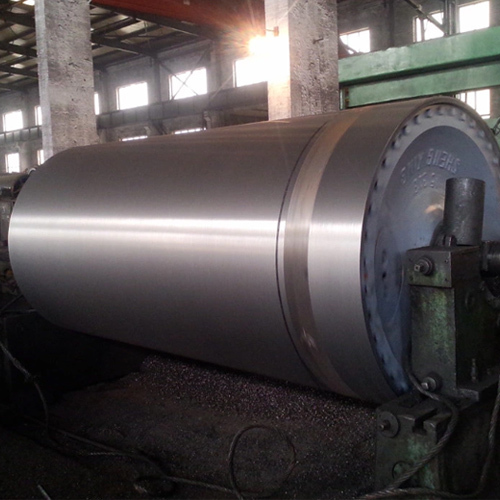

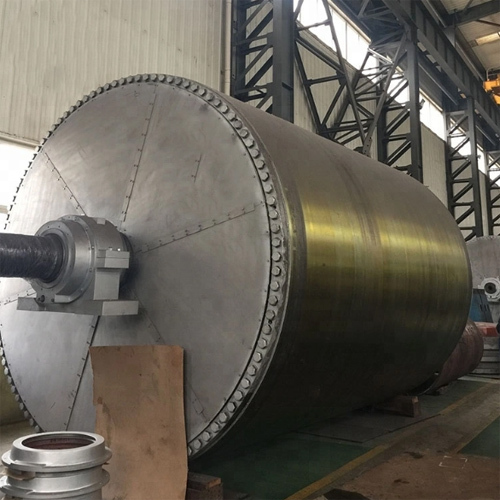

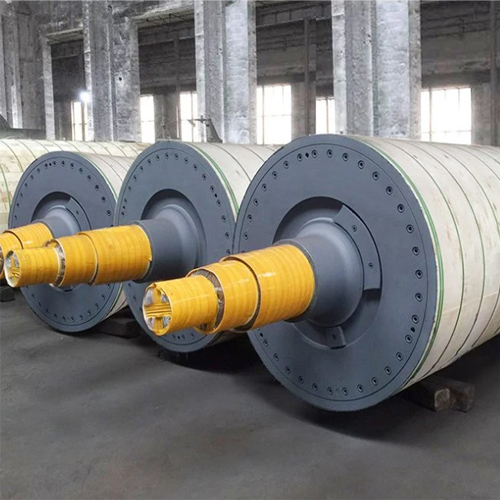

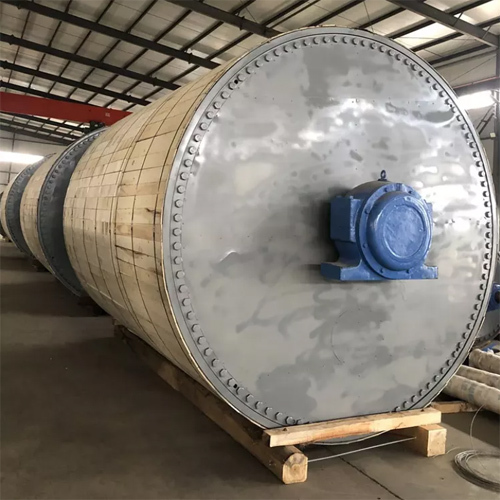

Dryer cylinder,heads and journals are made of special cast iron.Separate journals are bolted onto the dryer heads. Dryer shells are ground on the outside and turned on the inside,while all dryer journals with steam or condensate pipes have insulation sleeves. The inner surface have grooves for the stationary siphones,the front side ends of all dryers contain manholes. The main parts include shell,dryer bars,syphon,manhole cover,shell head,spherical roller bearing,steam joint,etc.

Specification:

1.Material: HT200-HT350

2.Design pressure: 0.3-0.8Mpa

3.Hardness: HB180-HB260

4.Width: 1350-10000mm

5.Working speed: 200-1000m/min

6.Wall thickness: According to design regulations

7.Material composition: Alloy cylinder and ordinary cylinder

Advantage of Dryer Cylinder :

1. Excellent welding process applied for steel plates eliminating possible leakages.

2. Improve drying moisture cross profile. Increase cylinder drying capacity.

3. Increase the area and the rate of water filtration, increase production.

4. Improve the quality of paper, including the degree of uniformity, weight, aspect ratio.

5. Reduce the copper net, cloth etc. consumption and maintenance cos.

6. To strengthen the integrity of the equipment and anti-corrosion performance, durable.
