Needle corrugator belt with edge

Product Description

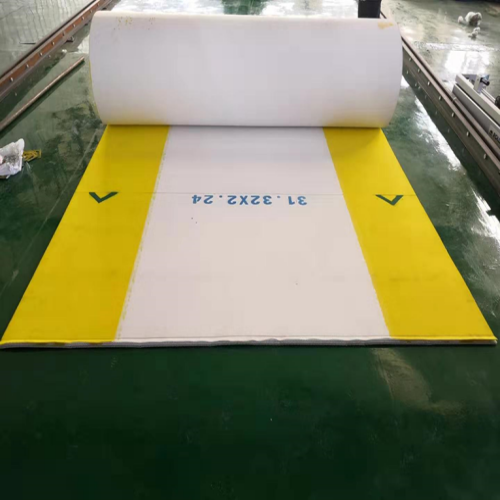

Needle corrugator belt with  edge

The corrugated board conveyor belt is one of the most important parts of the corrugated board production line. Its quality has a decisive influence on the quality of corrugated cardboard. Conveyor belts are usually used on fully automatic tile lines.

The role of conveyor belt:

Connect and provide tension

Transfer cardboard

Conduction pressure

Moisturizing and removing dampness

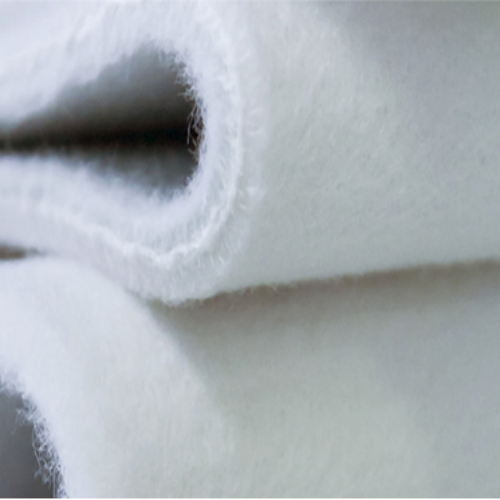

Needle corrugated belt: Needle corrugated belt adopts unique non woven needle punching technology and advanced production technology. The cloth is the middle layer, and after repeated multiple acupuncture processes. It is successfully manufactured after high temperature setting and chemical treatment.

1) No dipping agent (basic type)

2) Single sided dip

3) Double sided dipping agent, and wear-resistant agent 10 to 15cm can also be added on both sides (the ingredient of the dipping agent is Teflon, which ensures the stiffness and wear resistance of the belt, on the equipment side, not next to the cardboard side)

Needle corrugated belt often have hidden joints.

Features:

High temperature resistance

Anti aging

flat surface

Dimensionally stable

Adapt to high speed less than 300m/min

Long life  50 to 60million linear meters running at 150m/min speed
