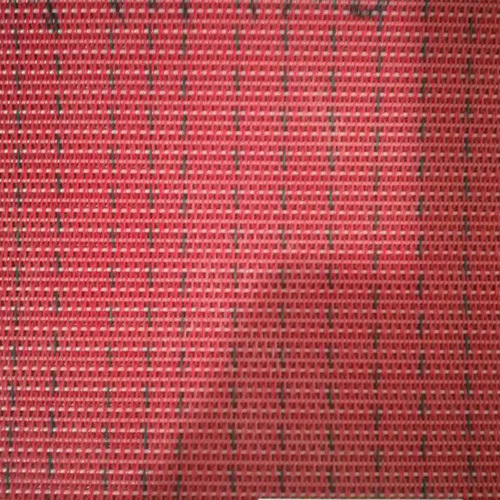

Polyester Spiral Press Filter Fabric Belt

Product Description

Polyester Spiral Press Filter Belts are made with spiral dryer fabrics with extra filler yarns inserted in the spiral loops to reduce the air permeability and less material loss on the surface of the fabric.

Polyester Spiral Press Filter Belt is also a monofilament polyester fabric but not like a woven fabric, instead this is a polyester fabric with spiral twisted wires where pins hold the spirals together like a chain.

Feature

The Polyester Spiral Press Filter Belts are produced with high cross-sectional stability and long service life.

The Polyester Spiral Press Filter Belts width can be from 20 to 500 cm, depending on the filtration equipment.

Due to the special structure of the spiral ring, there can be no seams at the filter belt connection

Robust glued edges

Application

Spiral fabric belts with filling yarns are mainly used as filter cloth, drying media, or conveyor belts for solid-liquid separation in the belt press filter.
We supply a wide variety of belts for industrial filtration or for environmental applications, choosing the material according to the characteristics of the product to be filtered, the work pressure, temperature, etc. that allows for achieving a perfect solid-liquid separation. The type of material for a belt can vary depending on the customer's specifications and applications.

1. Solid-liquid separation and drying

2. Effluent treatment (wastewater, sewage, sludge dewatering )

3. Pharmaceutical and chemical industry

4. Mining and mineral industry

5. Pulp and paper industry

6. Food industry
